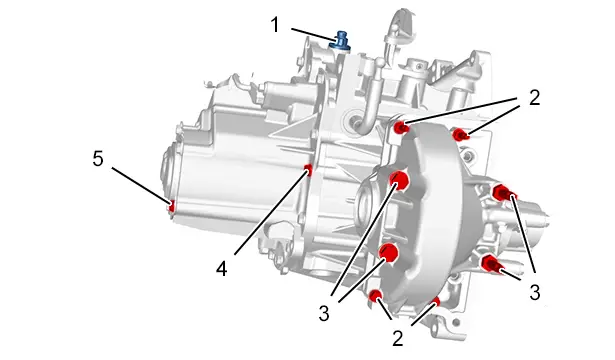

Identification | Description | Tightening torque |
(1) | Breather opening | 1,2 daNm |
(2) | Bolt (Differential housing / Clutch housing ) (Ø M7) | 1,5 daNm |
(3) | Bolt (Differential housing / clutch housing) (Ø M10) | 4 daNm |
(4) | Bolt (Gearbox casing / Clutch housing ) | 1,5 daNm |
(5) | Bolt (Cover screw / Gearbox casing) | 1,5 daNm |

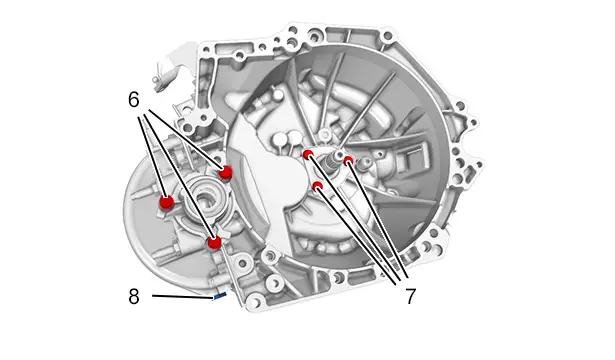

Identification | Description | Tightening torque |
(6) | Bolt (Speedometer take-off / Clutch housing ) | 1,5 daNm |
(7) | Bolt (Thrust bearing guide pin / Clutch housing ) | 1,5 daNm |
(8) | drain cap (*) | 3,5 daNm |
(*) Always replace |

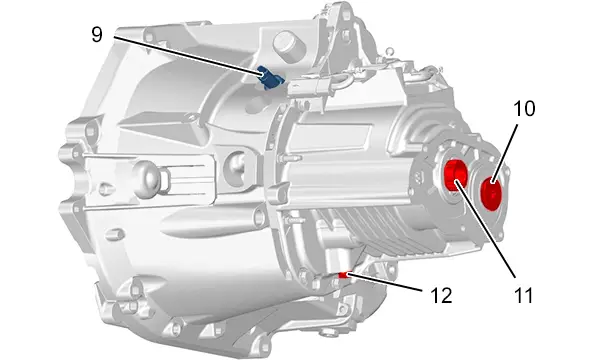

Identification | Description | Tightening torque |
(9) | Reverse lamp switch | 3 daNm |
(10) | Nut (Output shaft / gear) (*) | 13 daNm |
(11) | Input shaft nut (*) | 10 daNm |
(12) | Bolt (Reverse gear rocker shaft) | 4,5 daNm |
(*) Always replace |

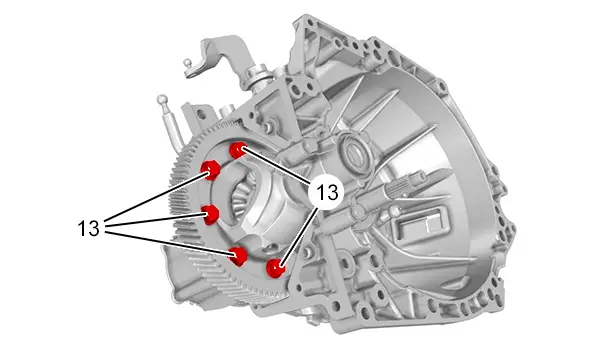

Identification | Description | Tightening torque |
(13) | Bolt ( differential / Differential crown wheel) | Tightening to 3 daNmAngular tightening to 35° |

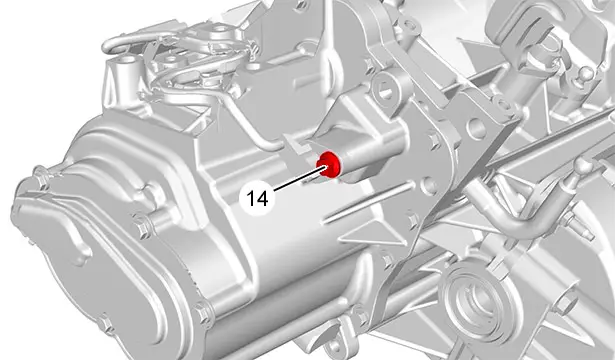

Identification | Description | Tightening torque |
(14) | Bolt (Neutral sensor / Gearbox casing) | 1 daNm |
