Peugeot 308: Tightening torques : Reduction gear
Peugeot 308 2021-2024 (P5) Service Manual / Mechanical :: Gearbox assembly / Gearbox / Tightening torques : Reduction gear

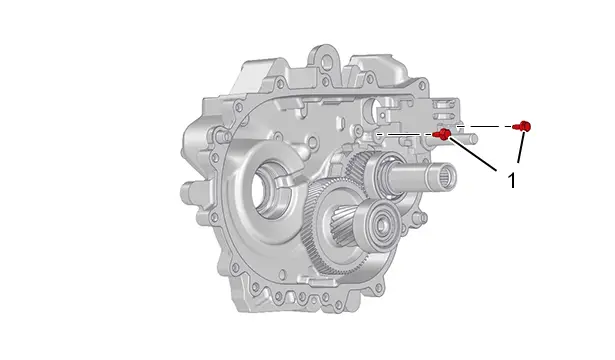

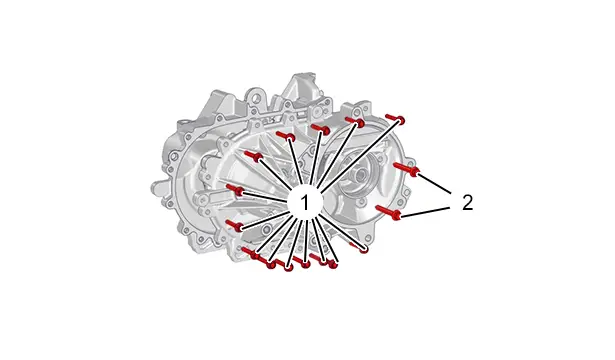

1. External components
1.1. Tightening torques
| Components | Description | Torque |
| (1) | Bolt (Reduction box casing / Reduction box casing) | 3 daNm |
| (2) | Bolt (Reduction box casing / Reduction box casing) | 3 daNm |

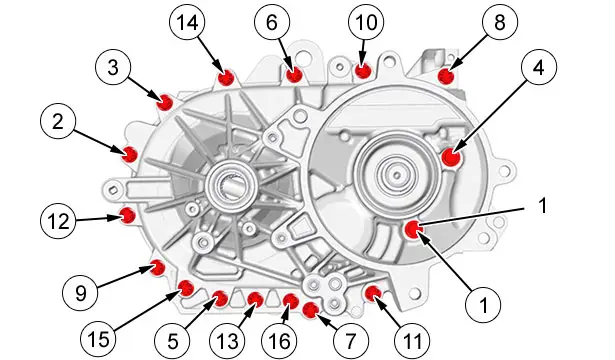

1.2. Order of tightening
(1) Bolt (Reduction box casing / Reduction box casing).

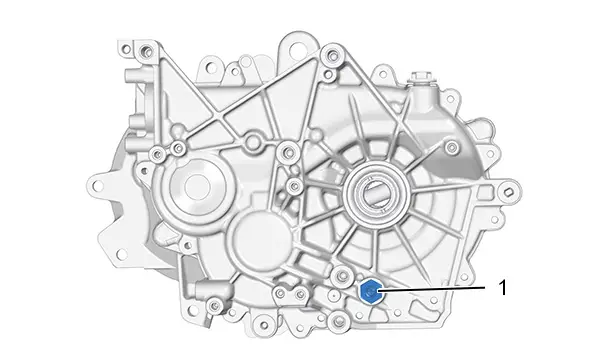

2. Drain caps
| Components | Description | Torque |
| (1) | drain cap | 3,5 daNm |

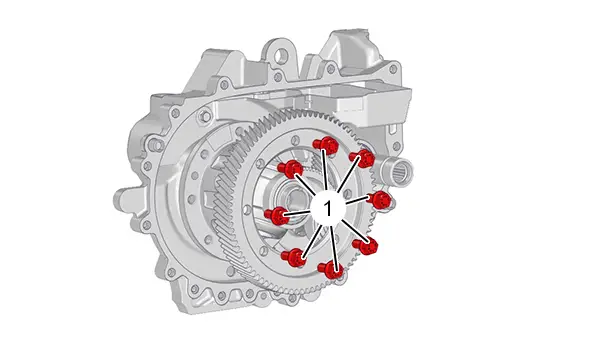

3. Internal components
3.1. Tightening torques
| Components | Description | Torque |
| (1) | Bolt ( differential / crown wheel) | Pre-tightening to 3 daNm |
| Angular tightening of 35° |

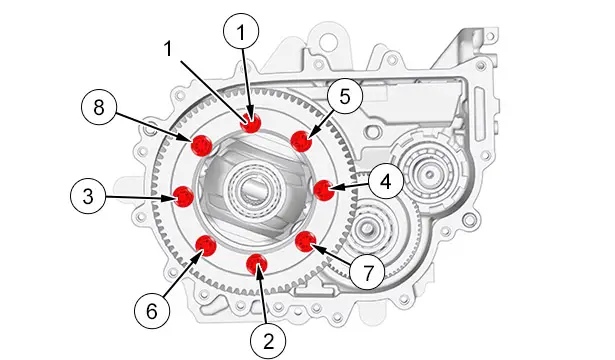

3.2. Order of tightening
(1) Bolt ( differential / crown wheel).
4. Oil filler neck
| Components | Description | Torque |
| (1) | Bolt (Oil filler neck / Reduction box casing) | 1 daNm |

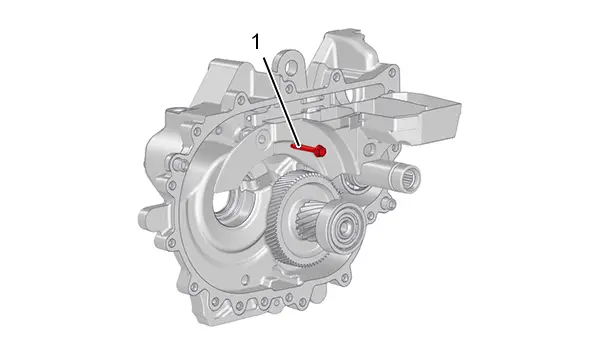

5. Park latch module
| Components | Description | Torque |
| (1) | Bolt (Park latch module / Reduction box casing) | 1 daNm |
