Peugeot 308: Stripping-assembling : Rear seat - Rear bench seat

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Tooling

2. Replacement part

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the rear seats.

4. Stripping

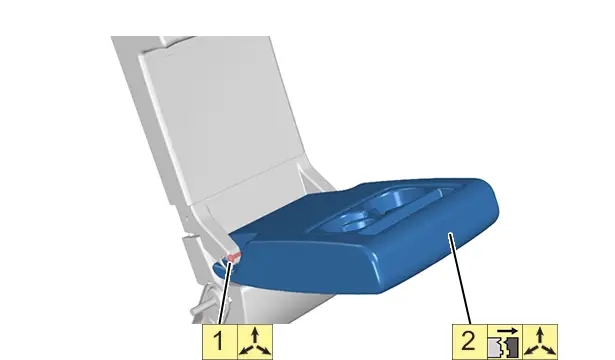

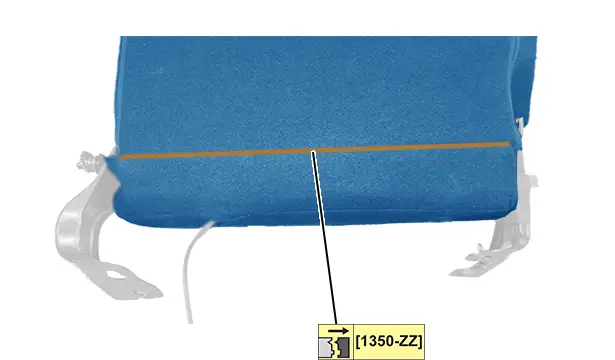

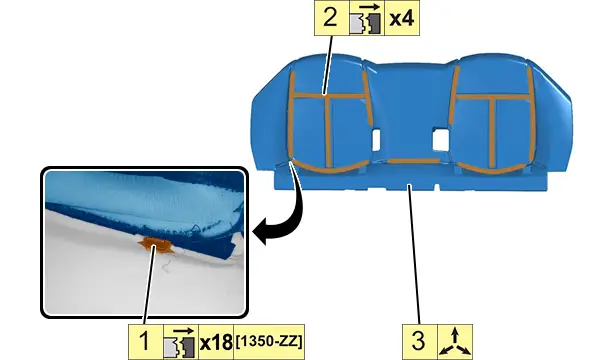

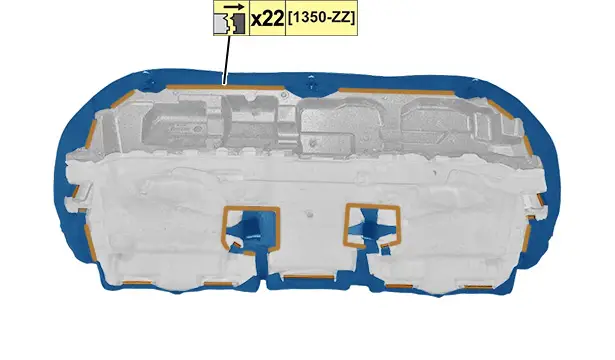

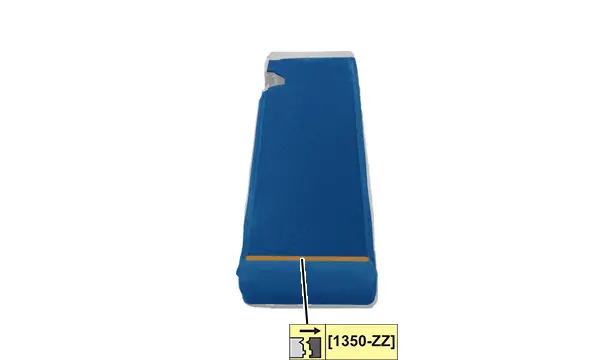

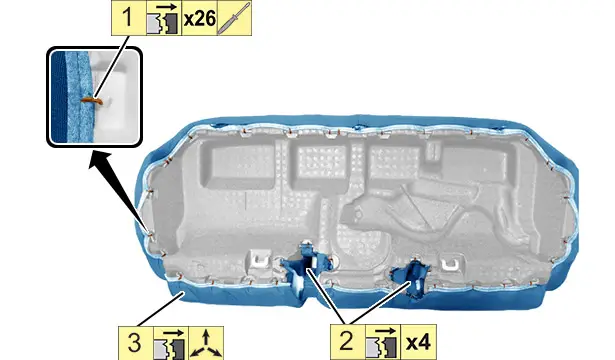

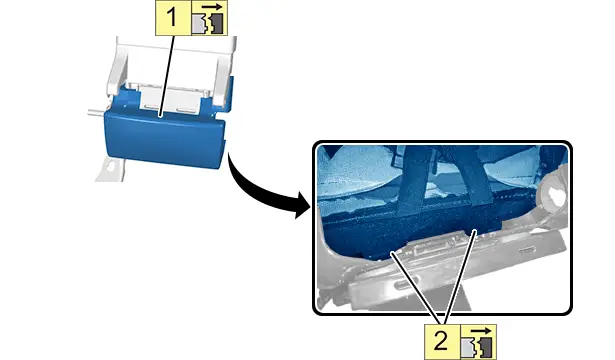

4.1. Rear seat cushion(depending on equipment)

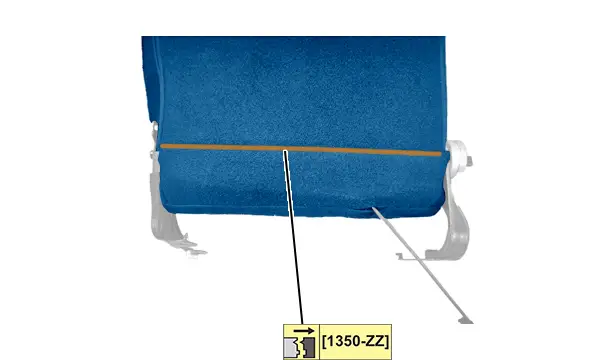

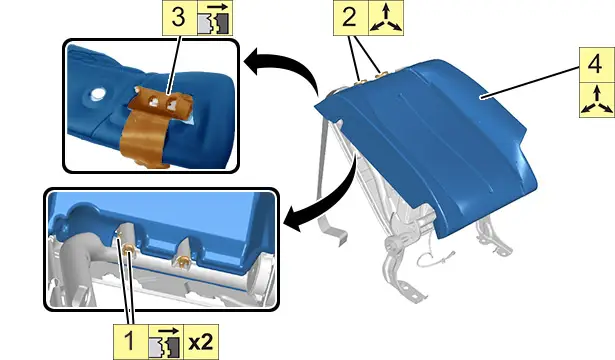

4.2. Rear seat cushion(depending on equipment)

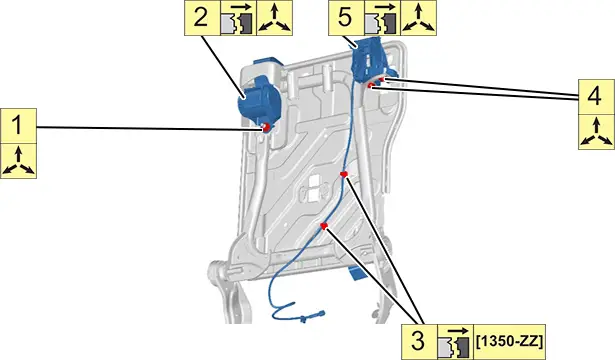

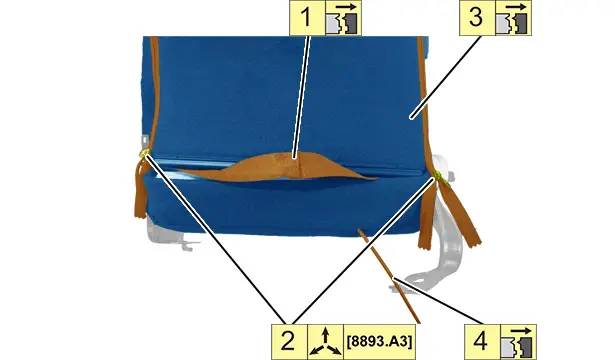

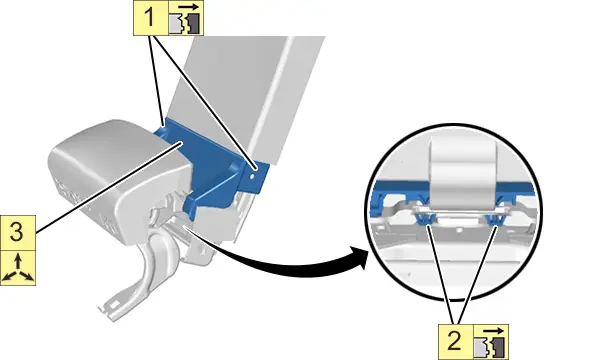

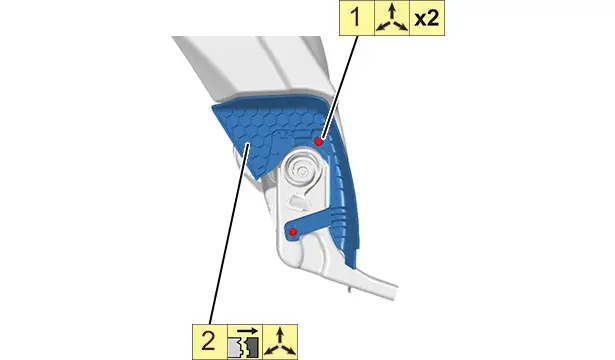

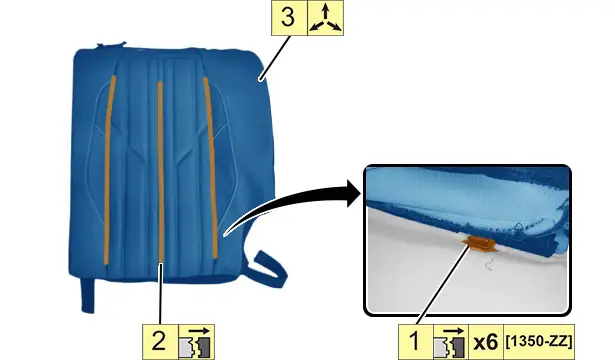

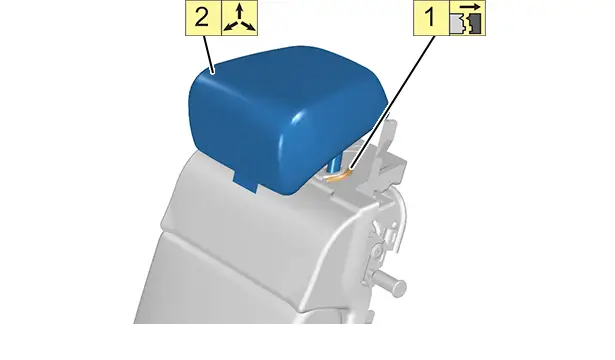

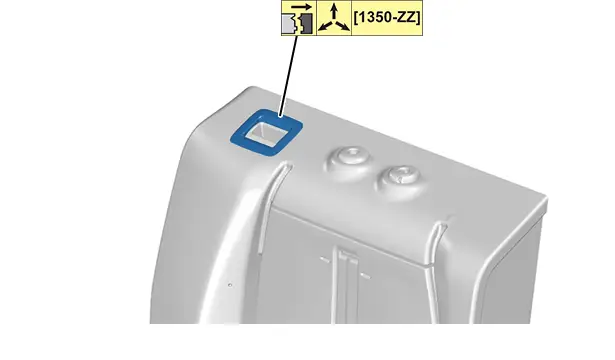

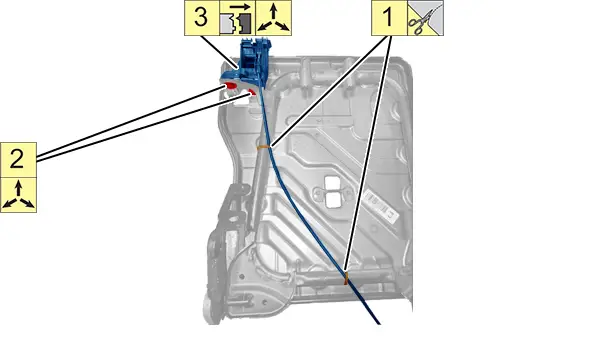

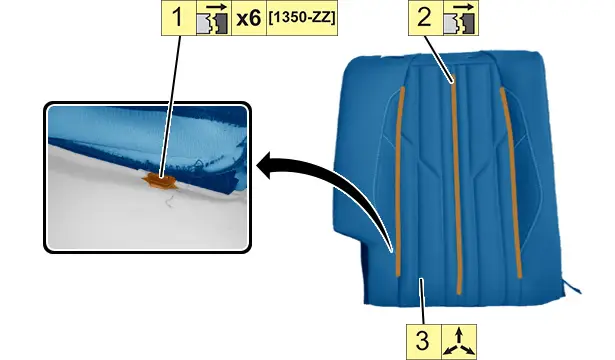

4.3. Rear seat back 1/3

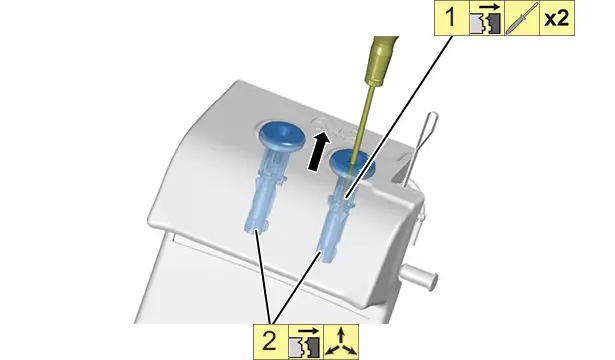

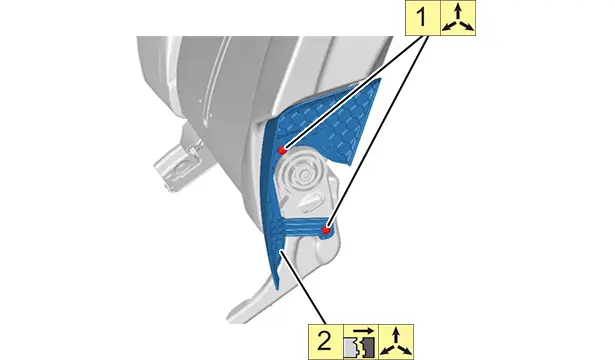

4.4. Rear seat back 2/3

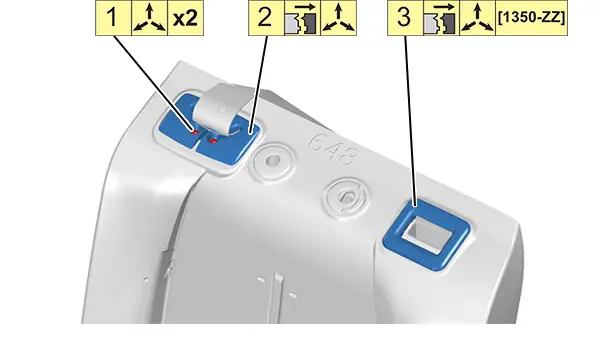

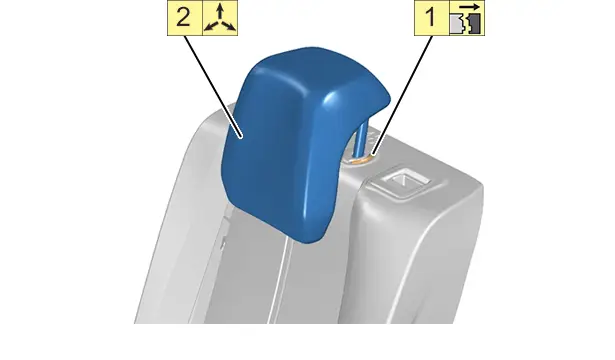

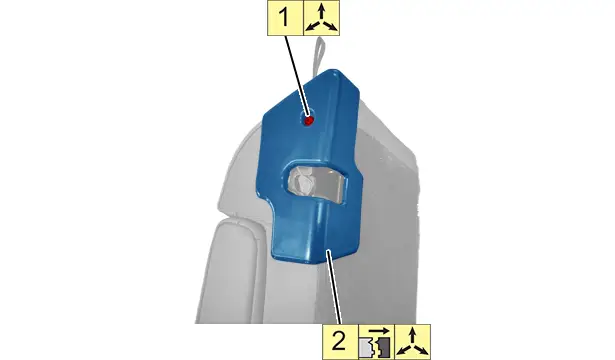

4.5. Rear seat back 3/3

5. Assembling

CAUTION : Observe the tightening torque.

Carry out the operations in the reverse order to the stripping operations.

6. Additional operations

Refit the rear seats.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
