Peugeot 308: Removing - refitting : Engine oil level and temperature sensor

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

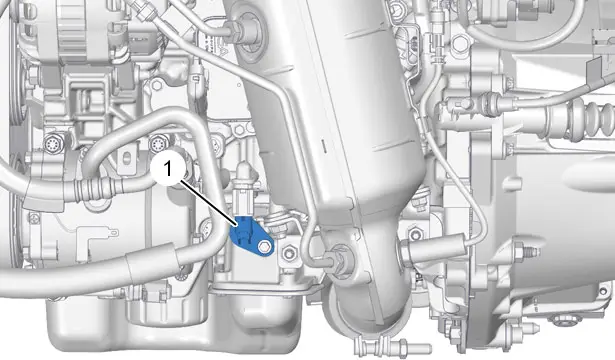

1. Location

(1) Engine oil level and temperature sensor.

2. Preliminary operations

Put the vehicle on a lift.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

Remove the under-engine protector.

3. Removing

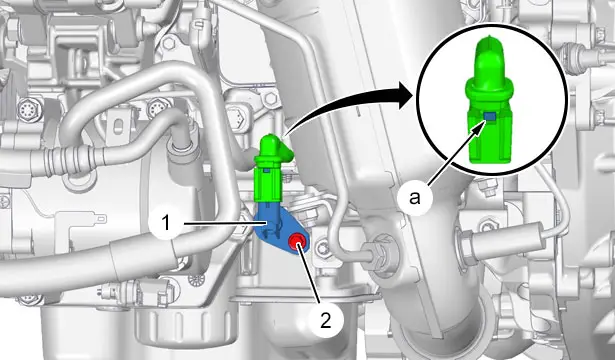

Disconnect the connector (at "a").

Remove the bolt (2).

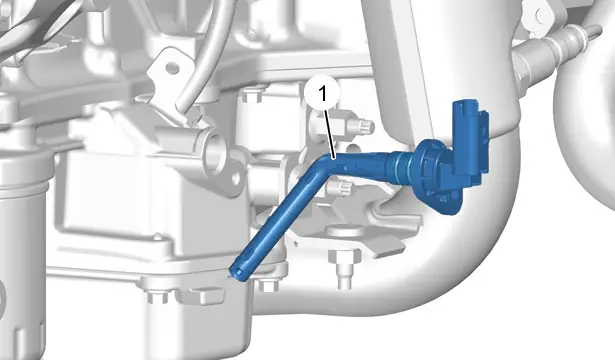

CAUTION : During removal : Tilt the engine oil level and temperature sensor (1) to avoid damaging it.

Remove the engine oil level and temperature sensor (1).

4. Refitting

CAUTION : Observe the tightening torques .

Refit :

• The engine oil level and temperature sensor (1)
• The bolt (2)

Reconnect the connector (at "a").

5. Additional operations

Refit :

• The under-engine protector
• The vehicle to its wheels

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).
