Peugeot 308: Rechargeable hybrid system

Electrical system

For more information, refer to the General recommendations on electrified vehicles and the Specific recommendations on rechargeable hybrid or electric vehicles.

The electrical circuit of the rechargeable hybrid system is identified by orange cables and its components are marked with this symbol:

The rechargeable hybrid powertrain uses a voltage of between 240 V and 400 V.

Comply with the warning messages shown on the labels, particularly inside the charging flap.

Traction battery

The Li-ion (Lithium-ion) traction battery stores the electrical energy needed to propel the vehicle.

It is located in the boot.

The traction battery's range varies depending on the type of driving, the route, the use of thermal comfort equipment and the ageing of its components.

The traction battery ageing depends on several factors, such as climatic conditions and the distance travelled.

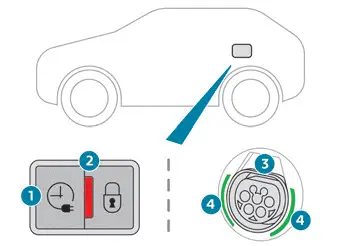

Charging flap

The charging flap is located on the rear left-hand side of the vehicle.

1. Deferred charging activation button
2. Indicator lamp confirming that the nozzle is locked into the charging connector.

   Fixed red: nozzle correctly positioned and locked.

   Flashing red: nozzle incorrectly positioned or locking not possible.

3. Charging connector
4. Light guides

In case of impact, even light, against the charging flap, do not use it.

Do not dismantle or modify the charging connector - risk of electrocution and/or fire! Contact a PEUGEOT dealer or a qualified workshop.

Charging cables, sockets and chargers

The traction battery can be charged using several different types of cables.

The charging cable supplied with the vehicle is compatible with the electrical installations of the country of sale. If you are travelling abroad, refer to the following tables to check the compatibility of local electrical installations with the charging cable.

Contact a PEUGEOT dealer or a qualified workshop to obtain the appropriate charging cable(s).

Identification labels on charging sockets/connectors

Identification labels are affixed to the vehicle, charging cable and charger to inform the user about which device needs to be used.

The meaning of each identification label is as follows:

Types of charging

The estimated charging time is indicated on the instrument panel when the vehicle is connected. It may vary depending on various factors such as the outside temperature or the quality of the electricity supply.

If the outside temperature is below -10ºC, it is recommended to connect the vehicle as soon as possible as the charging time may increase significantly. The traction battery may not charge fully.

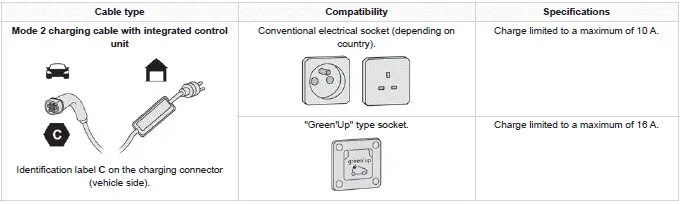

Domestic charging cable (mode 2)

It is essential to avoid damaging the cable and to keep it intact.

In the event of damage, do not use it and contact a PEUGEOT dealer or a qualified workshop to replace it.

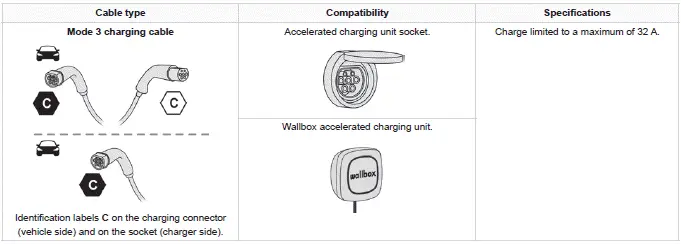

Accelerated charging unit (mode 3)

Do not dismantle or modify the accelerated charging unit - risk of electrocution and/or fire! To find out how it is used, please refer to the accelerated charging unit's user instructions.
